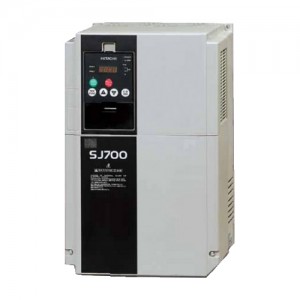

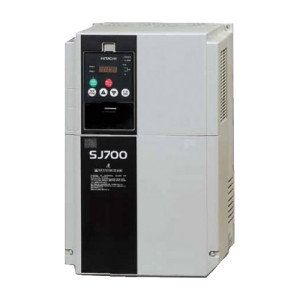

Hitachi Drives SJ700

HITACHI SJ700 Drives

FEATURES

• High Starting Torque 200% at 0.3Hz. (75 to 132kW : 180% at 0.3Hz, 185kW and over : 150%, at 0.3Hz)
• Hitachi exclusive 0Hz Domain sensorless vector control.
• High accuracy & improved Auto-tuning function.
• Full Vector Control with Feedback option (Torque Control, Position Control)
• Over current & voltage suppress function.
• Sequence operation is realized by downloading to an inverter a program created with Hitachi's Pro Drive Next software.
• EMI Filter will be built-in (Category C3 up to 150kW).
• Internal Braking Circuit will be built-in up to 22kW.
• Emergency Stop Function.
• DC Bus AVR Function During Deceleration.
• Using optional WOP operator, SJ300 parameters can be transferred easily to SJ700
• Data comparison function shows only parameters changed from factory default.
• Ability to define 12 user-selectable parameters for display.
• Basic mode shows only most commonly used parameters.
